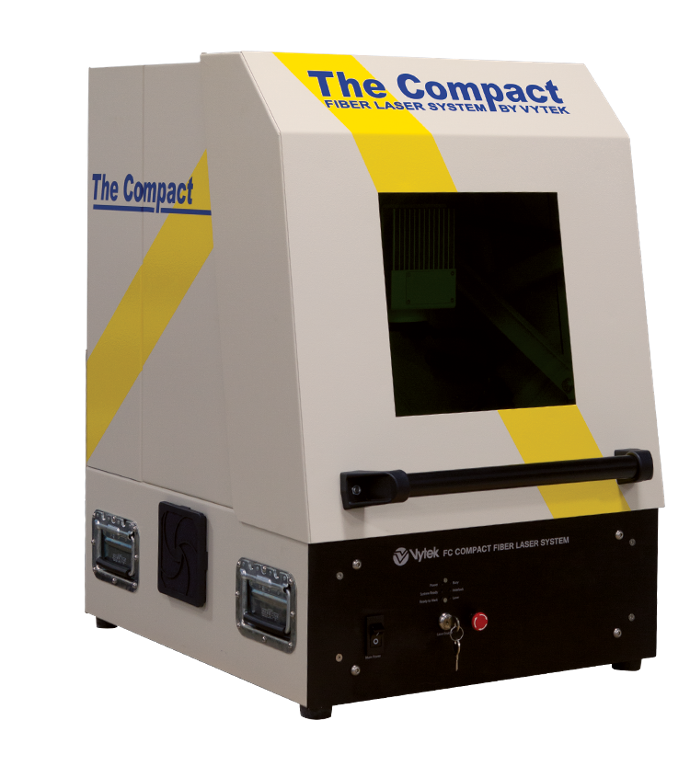

COMPACT
Laser Marking System
The Compact™ is an advanced, industrial grade, galvo marking station that is perfect for low production laser marking or engraving. With its lightweight and easy setup, you can simply plug the system into a 110 VAC outlet and start marking in no time.
Designed to meet a wide range of marking needs, the Compact™ can easily adapt to a variety of part shapes and sizes. It can accommodate a 16" x 16" part size while remaining a benchtop model. Moreover, it comes standard with a true 30-watt fiber and offers options for higher wattages or MOPA lasers.
The Compact™ integrates:
- 7-inch Z-Axis stroke.
- Class 1 Enclosure
- Quick Change Optic Assembly for Focal Lengths from F-110 mm to F-254 mm
- Full Function Operator Interface for On-The Fly Program Adjustment with the PC option
The Compact™ is not only safe and flexible, but also service-free. It has an impressive list of standard features and a host of affordable options, making it the perfect entry-level solution for your laser marking and engraving needs.
Contact us today to learn more about the Compact and how it can help you achieve your marking and engraving goals.
FEATURES
Standard Table Configuration
The table is an aluminum T-Slot extrusion support ready to accept a customer supplied fixture assembly.
Beam Delivery
With the Compact series the laser beam is delivered to the work surface by means of a high accuracy galvo with a working field size defined by the user’s choice of optics. The optional 3-axis galvo extends the field size to 300mm as well as offering 3D engraving features.
Base Structure
The base system is a steel structure designed specifically to reduce the effects of the surrounding vibrations while offering a thermally stable support structure. The Galvo assembly is mounted on a high precision Z stage which itself is mounted to a precision surface.
Fiber Laser
The Compact series can accommodate air cooled Q switched, Pulsed and CW laser sources from 30 to 200 watts and on select models, MOPA Fiber lasers from 30 to 350 watts.
PC Connection
The PC is connected via ethernet or USB depending on the configuration.
Air Assist
Use of clean, filtered shop air for the air pump which will help keep the work area clean.
Aiming Beam
(2) Class 2M Red Diode 635nm
MACHINE SPECIFICATIONS*
LASER TYPE (Wavelength)
Fiber 30, or 50 Watt Pulsed Fiber (1.070nm)
Fiber MOPA 30 to 350 watt (200nm)
POWER CONSUMPTION W/O LASER*
≤450W
ELECTRICAL REQUIREMENTS
100-240 VAC 50/60Hz
OUTSIDE DIMENSIONS, mm (in), HxWxL
812 x 558 x 660 (22″ x 26″ x 32″ with door open - 48")
Max Part Size mm (in) W x L
400 x 400 (16″ x 16″)
Maximum Part Height mm (in)
W/ a F-160
56 (2.2″)
*Specifications are subject to change without notice.
COMPACT LASER MARKING SYSTEM IN ACTION
MACHINE AVAILABLE OPTIONS
Focus Lens Options
F-100
- Field size mm(in): 70x70 (2.75” x 2.75”)
- Working focal length mm(in): 97 (3.82”)
F-160
- Field size mm(in): 110x110 (4.33” x 4.33”)
- Working focal length mm(in): 176 (6.93”)
F-254
- Field size mm(in): 175x175 (6.89” x 6.89”)
- Working focal length mm(in): 296 (11.65”)
Rotary Options
Heavy Duty 3 Jaw Chuck Rotary Axis
- 5" diameter 3 jaw chuck
- Up to an 8" diameter swing
- Includes home position sensor
3 Jaw Chuck Rotary Axis
- 2.75" diameter capacity
- Adjustable Angle from 0 to 90
Fume Extraction Options
.5kW 3 Stage Filtration System
- Removes particles from .3 to 1 micron
- Exchanges inside air
Special Options
Dual Diode Focus System
- For precise focus adjustment
Floor Stand
- Full support floor mounted
Pass Through Options
- Allows over size work to be processed in Class 4 operation
- Side to side pass through
- Key lock doors
- Includes laser safety kit
