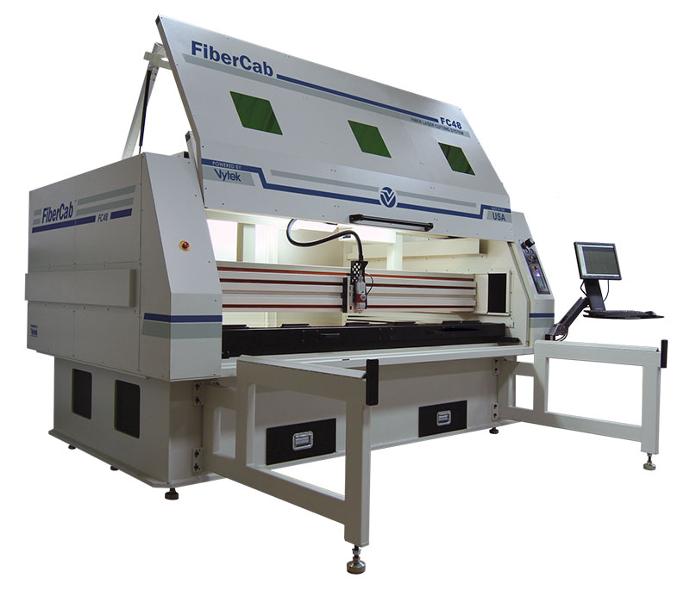

FC44 & FC48
Laser Cutting System
The FiberCab Mini Series from Vytek is built upon 25+ years of experience building production laser and CNC equipment. A multi-year focused effort went into the design and building of an ultra-high accuracy high speed laser cutting platform specifically for small to micro part processing. Our efforts have resulted in the Mini-series a true advancement in a laser cutting platform design.
The Mini Plus FC32 was designed and optimized for both ferrous and non-ferrous metals with the ability to process materials as thin as .0002”/.005mm and the ability to resolve part geometries to as small as .0005”/.012mm.
The FC32 incorporates an ALL ironless linear motors mounted to a thermally stable GRANITE base. The drive system is capable of extremely high accelerations while maintaining the most demanding accuracies. Combined with our latest generation of controls and user interface the Mini-series is among the highest throughput systems on the market regardless of size.
Benefits
- Ultra-efficient fiber laser powers to 6kW
- Process based controls for seamless programing
- High-Speed, non-contact height following
- Programmable gas assist controls
- Slide-out table for easy access
Specifications
FC44
| Design | Bridge Gantry Style |
| Work Table Height | 910 mm (36″) (w/o pallet changer) |
| Max Load Weight | 1,000 lb. |
| Axis Stroke | 1300 mm (51″) x 1300 mm (51″) |
| Repeatability | .015mm (.0005″) |
| Drive Feed Method | Precision Ground Ball Screw |
| Worksheet Clamps | Manual |
| Assist Gas System Specs | 22 BAR – 325 psi |
| Worksheet Clamps | Manual |
| Assist Gas System Specs | 22 BAR – 325 psi |
| Gas Supply | Nitrogen, Oxygen |
| Laser Core Fiber | Single & Multi-Mode (Laser power dependent) |
| Wavelength | 1070-1080 um |
FC48
| Design | Bridge Gantry Style |
| Work Table Height | 910 mm (36″) (w/o pallet changer) |
| Max Load Weight | 2,000 lb |
| Axis Stroke | 1300 mm (51″) x 2500 mm (98″) |
| Repeatability | FC48/510/512: .05mm (.002″) |
| Drive Feed Method | Precision Ground Ball Screw |
| Worksheet Clamps | Manual |
| Assist Gas System Specs | 22 BAR – 325 psi |
| Worksheet Clamps | Manual |
| Assist Gas System Specs | 22 BAR – 325 psi |
| Gas Supply | Nitrogen, Oxygen |
| Laser Core Fiber | Single & Multi-Mode (Laser power dependent) |
| Wavelength | 1070-1080 um |
