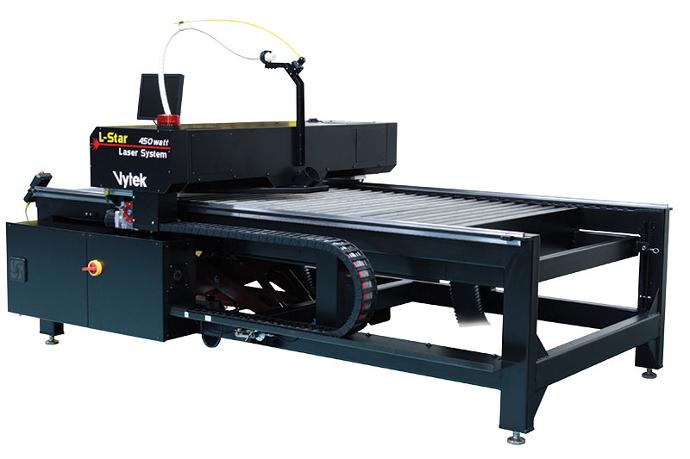

LST510 / LST610
Large Format Laser Cutting & Engraving
The LST510HD and LST610HD systems are designed for the small to medium sized manufacturers with even larger format cutting needs.
The LST510 and LST610 are large enough to handle big jobs but compact enough to fit into even the smallest shops. The L-Star also the one of most flexible laser systems on the market, with fantastic cutting and engraving features as well as a host of productivity options and everything in between.
The L-Star is really a business in itself.
The LST510 and LST610 are based on an XY gantry style positioning system. It utilizes dual brushless servo drives in the X axis (long axis) using high precision rack and pinion mechanism on each side. The Y axis uses a single brushless servo motor system driving a high precision belt system. The Y axis positioning system is the result of 2 years of effort to bring the most accurate and fastest system for image engraving on the market the market. In fact we believe the Vytek L-Star is the fastest engraving system in the world.
Benefits
- Operators do not have to be programmers. Files can be created well before they are ready to run on the laser system and can be re-run without having to re-open the file on a PC.
- Run history is captured, including cycle times on your network.
- Multiple machines can be operated from one non-dedicated PC, or multiple PCs can create jobs for one laser system.
- Machine diagnostics can be remotely checked with an internet connection.
Specifications
LST510 | LST610 | |
Work Area | 62" x 122" | 72" x 122" |
Available Laser Wattages | 90, 170, 250, 450, 1000 | 90, 170, 250, 450, 1000 |
Outside Dimensions (W x D x H) | 94" x 155" x 59" | 105" x 155" x 59" |
Height with Updraft | 93" | 93" |
Width with Computer Arm Extended | 112" | 123" |
Weight (approximately) | 3,000 lbs | 3,500 lbs |
Tubing O.D. | 3/8" | 3/8" |
